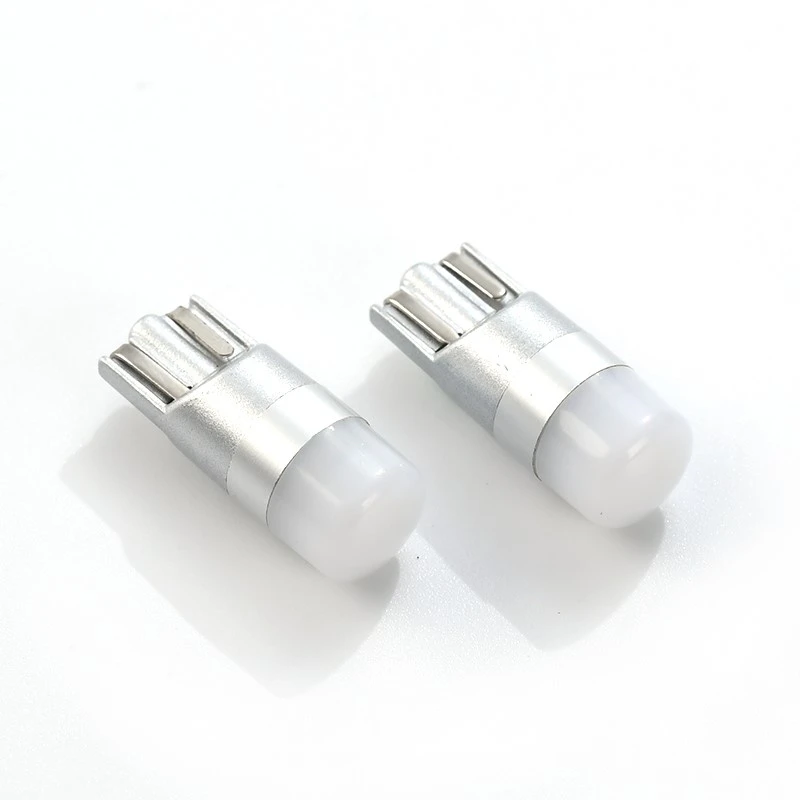

T10 LED Courtesy Lights 1W 100LM Osram Puddle Lamp
Beam Characteristics
The frosted lens on these LED courtesy lights spreads the beam into a broad, even pattern rather than concentrating it into a small bright spot. This helps illuminate a wider area directly below the door opening, which can be useful for spotting hazards such as puddles, curbs, or uneven pavement before stepping out. The 6000K–6500K color gives a white appearance that some users prefer for modern vehicle interiors.
Specifications
| Product Name | LED courtesy lights – T10 1SMD 3030 |
| Housing Material | Aluminum alloy |
| LED Type | OSRAM 3030, 1W |
| Color Temperature | 6000K – 6500K |
| Power Draw | 1W |
| Luminous Output | 100LM |

Physical Design and Installation
The 26mm length is comparable to standard factory bulbs in this socket type, which helps with fitment in shallow housings. The aluminum body assists with heat dissipation, although the 1W power draw generates relatively little heat in normal use. No external drivers or cooling fans are required. The wedge base is designed for plug-and-play installation without adapters.
Durability Considerations
The OSRAM chip is a recognized brand in the LED industry and is rated for extended operational life under typical conditions. The aluminum housing provides some protection against vibration from door closures. The sealed construction helps keep moisture and dust away from internal components, which is relevant for door-mounted applications where exposure to weather is more likely.
Typical Applications
These LED courtesy lights are commonly fitted to passenger vehicles, SUVs, and light trucks that use T10 sockets for interior and door lighting. They are also suitable for aftermarket installations in custom vans or RVs where entry illumination is desired. The 100LM output provides enough light for close-range visibility without being overly bright for surrounding areas.
Manufacturing and Wholesale Information
The product is assembled in a facility operating under ISO9001 and IATF16949 standards, with automated production processes to maintain consistency across batches. For B2B buyers, these LED courtesy lights are available with custom packaging and logo printing services. Direct sourcing from the factory removes intermediary costs, and minimum order quantities for custom orders are kept practical for both small and large retailers. Inventory is maintained for regular dispatch to fulfillment centers.
