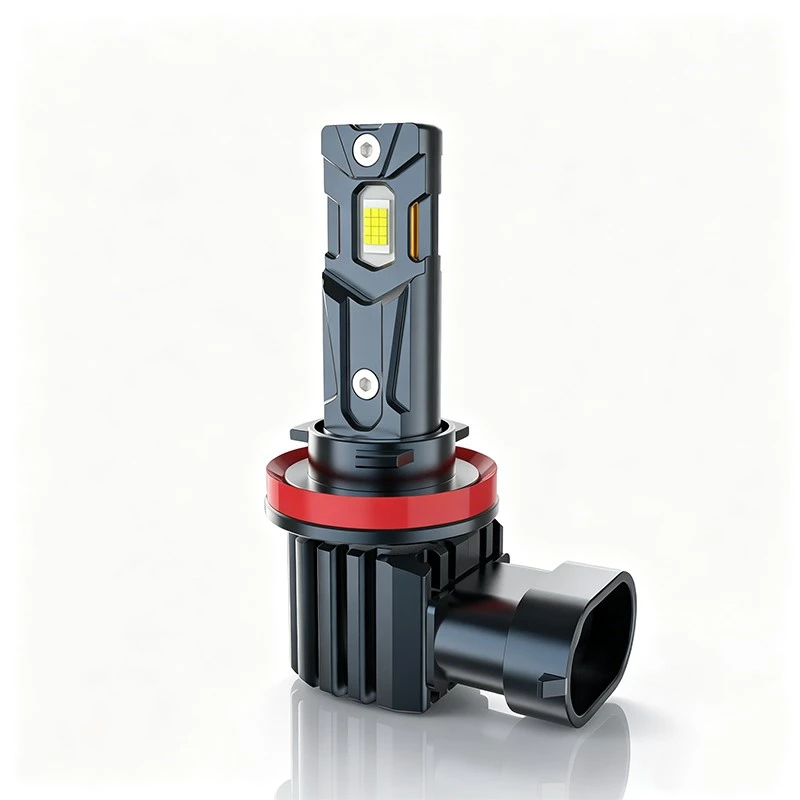

H9 Light Bulb

The bulb uses a copper thermal pathway combined with a sealed liquid-filled tube to transfer heat away from the LED board. This type of cooling is common in higher-output LED headlight designs, as it allows heat to be carried to the rear heatsink area without relying solely on surface conduction. No external cooling fans are used, which reduces potential failure points.

The chips are positioned on two sides of the board to replicate the filament placement of a standard H9 bulb. This layout is intended to produce a beam pattern that matches the factory reflector or projector housing without excessive scattering. The 3,000LM output per bulb is higher than most halogen H9 units, which typically produce around 1,200LM.

The H9 LED headlight uses the standard three-prong connector and does not require polarity matching, as the driver circuit accepts either orientation. The overall dimensions are similar to the factory bulb, so it fits into most housings without modification. Some vehicles with CAN-bus monitoring may need additional resistors or decoders to prevent error warnings, which is a general consideration for LED replacements in this socket type.

The H9 socket is found in various passenger cars, SUVs, and light trucks, often as a low-beam or high-beam position. This bulb is intended for users who want a white-light alternative to halogen without altering the factory wiring or housing.

Each bulb is checked for basic function before leaving the production line. The factory holds ISO9001 and IATF16949 certifications, which cover quality control procedures. For wholesale customers, this model can be supplied with custom-branded packaging or printed logos upon request. Buying directly from the production side avoids additional distributor fees, and order sizes for customized requests are negotiable. Regular stock is kept on hand for routine shipments to fulfillment warehouses.
