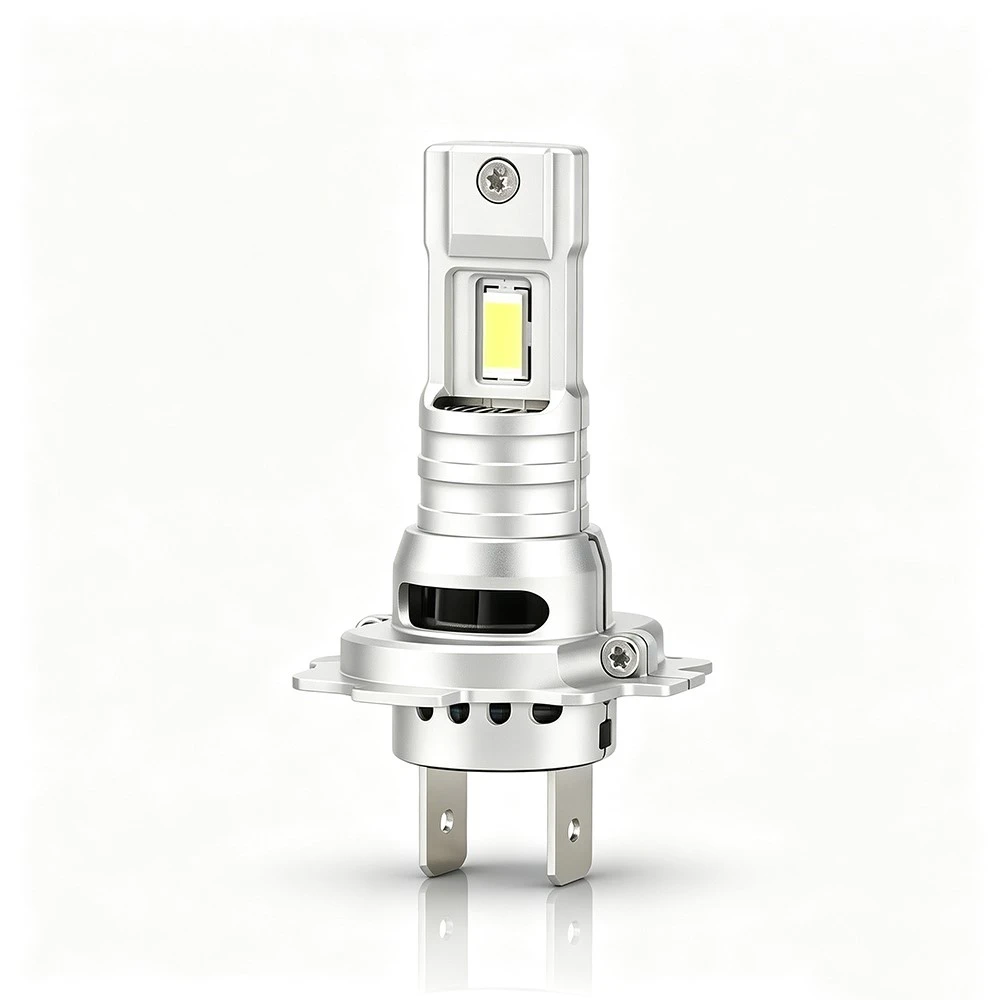

All Weather H7 LED Fog Light Bulb 12V 20W Zinc Alloy
Construction and Thermal Management
This H4 LED fog light uses a zinc alloy housing instead of the more common aluminum designs. Zinc alloy offers good vibration resistance, which is relevant for components mounted low on the vehicle where road shock is more pronounced. The material also aids heat dissipation: the housing draws warmth away from the internal driver circuit, allowing steady operation without active fan cooling. Rated lifespan is quoted at approximately 50,000 hours under normal use.
Specifications
| Product Name | Reflector Match H7 Fleet Fog Light Bulb |
| Housing | Zinc alloy, corrosion-treated |
| LED Chip | 3570 array |
| Color Temp | 6000K white (amber 3000K / warm 3500K also available) |
| Power | 20W actual draw |
| Output | 2600LM |

Fitment and Installation
The base integrates a two-pin connector that matches the factory H7 socket. No adapters, no wire splicing-it goes in the same way the original bulb came out. The internal board is slim enough to clear tight bumper housings, and the chip placement works with the vehicle's existing reflectors rather than trying to override them.
Beam Pattern and Real-World Use
On the road, this H7 LED fog light sends light low across the pavement, helping drivers spot curbs, potholes, or road edges in rain or fog. The beam stays below oncoming eye level, so it doesn't create glare for other traffic. It's not meant to replace high beams-it's for close-in, low-speed visibility when weather cuts down normal headlight performance.
Custom Options for Retailers
The base unit is H7, but the same design can be adapted to H1, H3, H4, 9005, 9006, H8, or H11 if needed. Color temp and wattage can also be adjusted per order. These are production-level changes, not one-off mods, so lead times and MOQs are reasonable for small to medium sellers.
Ordering and Fulfillment
Production runs on automated lines, with stock held for regular dispatch to overseas warehouses. Buying direct cuts out distributor margins, and we offer branded packaging and logo printing on request. For custom specs, minimum quantities are flexible-contact us with your requirements and we'll send a quote accordingly.
